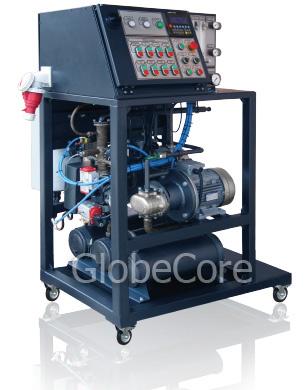

UVB-1-V Foamed Bitumen System
Send an e-mail enquiry to Globecore Pc
Min bitumen consumption in mixer, l/hour - 600;
Water consumption, l/hour, min/max - 6/30;
Air consumption, l/min, min/max - 0/100;
Bitumen pressure, max, MPa - 1,6;
Water pressure, max, MPa - 0,6;
Compressed air pressure (to mixer), max, MPa - 0,6;
Compressed air pressure (to control system), max, MPa - 0,4/0,63;
Bitumen temperature, min/max - 140/160;
Water temperature, ˚C, min/max - 20/ 60;
Oil temperature (heating), ˚C, min/max - 120/ 180;
Nominal power, kW - 10,4;
Power supply voltage, V - 380/220;
Bitumen tank volume, l - 15;
Water tank volume, l - 15;
Required amount of heating oil, l - 10...15;
Dimension, mm, length/width/height - 1250/970/1490;
Weight, kg - 400.
UVB-1-V bitumen system is designed for production of foam bitumen sample batches. The system is intended for operation by asphalt mix producers and road construction and repair facilities.
