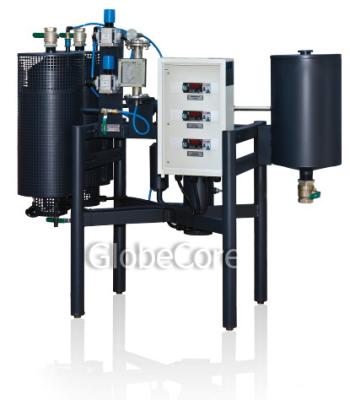

UVB-1-L Bitumen Emulsion Laboratory System
Send an e-mail enquiry to Globecore Pc
This system can be supplied with UVB-1 bitumen emulsion preparation plant or as a standalone application.
Max production capacity, dm /hour - 20;
Bitumen pressure at mixer, MPa - 1,6;
Bitumen temperature, ˚C - 140-160;
Water phase temperature, ˚C - 40-60;
Max power consumption, kW - 6;
Power supply voltage, V - 380/220;
Dimension, mm, length/width/height - 1500/700/1350;
Weight, kg - 200.
UVB-1-L Bitumen emulsion laboratory system is intended for: - preparation of laboratory samples of bitumen emulsions; - testing and refining of the bitumen emulsion recipe with given emulsion components and intended emulsion application.
