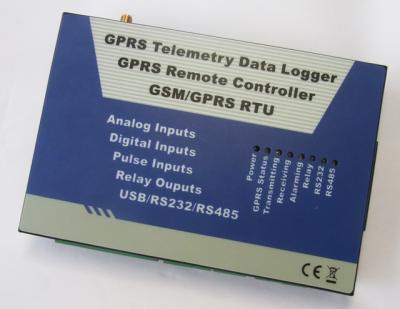

King Pigeon GSM GPRS Remote Controller S240
Send an e-mail enquiry to King Pigeon GSM alarm System Company
37 USD
Features:
Ø Quad-band Siemens MC55i GPRS Module and High-density performance line ARM 32-bit MCU inside;
Ø Direct connection to the GSM GPRS Network;
Ø Transparent Serial Data Tunneling using low cost SMS/GPRS network;
Ø Remote Configuration by SMS Messages or GPRS;
Ø Upload data via GPRS or SMS on Schedule or event occurs;
Ø Supports Dynamic Domain name or Static IP address;
Ø Supports SMS, GPRS UDP and TCP protocols;
Ø Supports Modbus RTU protocols;
Ø 1USB Port, 1 RS232 Serial Port, and 1 RS485 Serial Port;
Ø 6 Opto-isolated digital inputs can be programmed to NC/NO/Edge/Level type by switch, Passive Contact Type and Active Contact (3~24VDC) type can be programmed by DIP switch, DIN1 and DIN2 are Completely isolated. when alarm occurs can send Alarm Messages by SMS or GPRS or auto dial the preset phone numbers;
Ø 6 digital inputs can be used as Pulse Counters;
Ø 4 Digital Relay Outputs can be programmed as dial to switch on/off with free communication fee, alarm-linkage and Schedule to action, also can be send SMS to switch on/off;
Ø 10 Analog Inputs. (12 bit resolution, 0-5V or 0-20mA);
Ø 2 Thermometer Inputs for DS18B20, measures temperatures from -55°C to +125°C. Fahrenheit equivalent is -67°F to +257°F, ±0.5°C accuracy from -10°C to +85°C, Thermometer resolution is programmable from 9 to 12 bits;
Ø 4 Power Source Outputs for external device, like Thermometer or transducer, 3 with 3.3V/400mA, another with 12VDC/750mA;
Ø Supports 1 SMS Center Number and 1 IP address or 1 Dynamic Domain name;
Ø MTBF(Mean Time Between Failure) up to 2Years;
Ø User friendly PC Programming Interface, it can remotely program the terminals as well as to upload the data from the terminals by SMS or GPRS, all of the Current Value or status of the terminal can be display directly, and also will display the SMS Command details while you programming it;
Ø More Protocols can be updated by user through USB Port with the updated firmware;
Ø Power supply 9V to 24V(Recommend 12VDC).
The King Pigeon S2XX Serial GSM GPRS Remote Controller is a universal GSM dialer and controller as well as a GSM GPRS Remote Control and Alarm Unit. it provides multi digital relay outputs(120VAC/3A, 24VDC 3A,), upto 6 digital inputs(Opto-isolated,Active Contact, 3~24VDC, Completely isolated).can be used as pulse counter inputs), 2 temperature inputs for DS18B20, multi analog input(both of 0-20mA and 0-5V, 12 bit resolution), RS485 Port(Support Modbus RTU Protocol, more protocols can be added according to application requirements), reserved RS232 Serial Port and USB port for setting and download upgraded firmware by user on-site. It allows you to monitor and control an alarm or remote stations or equipments or machines by SMS(Short Message Service) Or GPRS. Another, it can transmit data from apparatus (thermometer, humidity meter, electric meter, flowmeter, PLC) to user or monitoring center by GPRS. What Applications does the GSM GPRS Remote Controller suitable for? 1. Security Alarm System applications; 2. Supervision and monitoring alarm systems 3. Automatic monitoring system; 4. Vending Machines; 5. Pumping Stations; 6. Buildings and Real Estate; 7. Weather Stations remote control and data logging; 8. River Monitoring and Flood Control remote control and data logging; 9. Oil and gas pipelines remote control and data logging; 10. Corrosion protection 11. Valve controls; 12. Wellheads; 13. Energy saving,street lights control system; 14. Tanks, levels, temperatures,water leakage applications; 15. Transformer stations; 16. Unmanned machine rooms; 17. Control room application; 18. PLC and Automation System, M2M; 19. GSM Access Control System, GSM Gate Opener, etc.
